The Invisible Guardrails: How Robotic Safeguards Put People at Ease

Application Tips2026-07-17

Corresponding Author: Cherry Cheng
Reviewers: Jerry Li, Kevin Yang, Hao Qian

Recently, I came across an intriguing video: a humanoid robot was tidying up a living room autonomously. But rather than mechanically executing a pre-programmed routine, it had apparently learned to take shortcuts, almost like a human being lazy. It casually tossed a used towel over its shoulder and tucked an oversized box under its arm. The sight was amusing, yet profoundly thought-provoking: machines are beginning to "think". However, when a robot no longer blindly follows commands but instead chooses its own path, how can we ensure that its chosen "shortcut" won't injure a person or knock over a vase? This brings us to a series of safety system designs that act like invisible guardrails, protecting our daily coexistence with robots.

Let's start with the Safety Interlocking System (SIS), a fundamental concept in industrial safety. Interlocking establishes a restrictive relationship between two or more actions that could potentially conflict. In robotic systems, the SIS is typically implemented via hardware logic, operating independently of the main control program. For instance, when a robot's servo drive detects an abnormal external signal, it can directly cut off the power circuit via a safety relay, rather than waiting for a software response. This is a physical interlocking mechanism that ensures the robot cannot execute dangerous movements even if the main control program crashes or communication is lost. Examples include prohibiting high-speed motion when a person approaches, or preventing collisions when robot arms intersect.

Next, consider the "Cow Barn", a literal translation of a term that refers to the horizontal beam in a pasture that prevents a panicked cow from charging out and injuring anyone. When a startled cow bolts, this beam stops it from breaking through the fence. In a robotic system, the Cow Barn plays the same role: it sets an unbreachable boundary at the software level. In a servo drive system, for instance, we define position limits, velocity limits, and torque limits for each motion axis. When the robot's "autonomous decisions" attempt to exceed these thresholds, the Cow Barn mechanism intervenes forcibly by decelerating, stopping, or reversing the motion.

Both the SIS and the Cow Barn are designed to protect the user, safeguarding the boundary between human and machine. However, we also need another layer of protection—one that protects the circuitry itself: Supervisory protection. In power electronics systems, this typically includes overvoltage protection, overcurrent protection, and overtemperature protection. Implemented by dedicated supervisory chips or comparator circuits, it continuously monitors key parameters and, upon detecting an anomaly, will cut off power or reduce output to prevent the circuit from burning out. While not directly related to human safety, this layer is the foundation for the system's long-term stable operation.

Speaking of protection, we must mention a concept that is often confused: Crowbar. The name is quite vivid. Imagine a runaway horse-drawn carriage; in a moment of desperation, the driver jams a crowbar between the spokes of a wheel, locking it and bringing the carriage to an abrupt halt. It's crude, but highly effective. In power supply systems, a Crowbar circuit serves a similar purpose: when it detects an overvoltage or fault condition, it deliberately creates a short circuit, causing the voltage to collapse and forcing the system to shut down. The Crowbar forces a discharge and acts as a physical failsafe. Interestingly, in the past, security officers in some places used a similar tactic—not to strike people, but to thrust a long pole into the spokes of a speeding motorcycle's wheel to stop it. That pole was the real-world equivalent of a Crowbar: brutal, direct, and effective.

Another concept that may appear similar to the Crowbar circuit but is fundamentally different is Active Discharge. In motor drives or switching power supplies, the bus capacitors often retain a high-voltage charge after the system shuts down, posing a safety hazard to equipment and maintenance personnel. The Active Discharge circuit's job is to dissipate this residual energy at a controlled rate after system power-off, using controlled switching devices and discharge resistors. The key difference from the Crowbar is this: the Crowbar is fault-triggered, irreversible, and destructive, while Active Discharge is planned, controlled, and nondestructive.

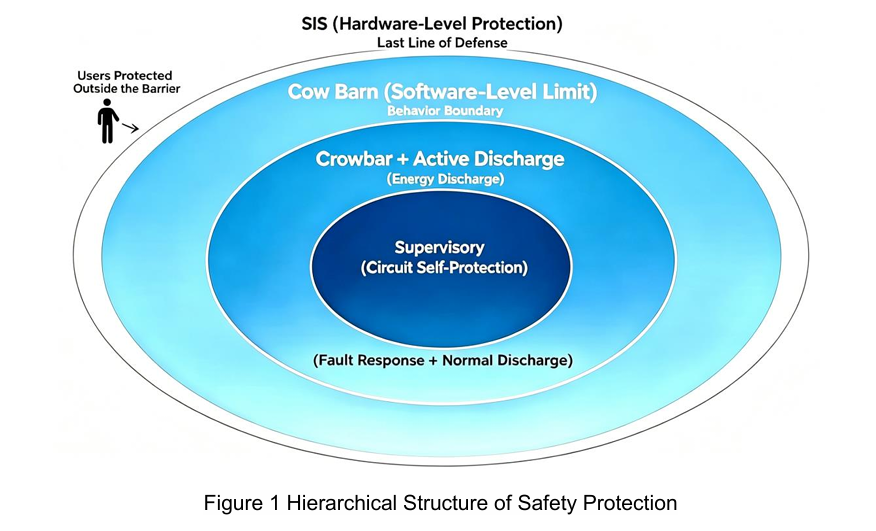

Looking back at that clever robot that learned to "take shortcuts", its intelligence is exciting. However, what truly enables it to safely enter our homes and factories are these layers of invisible "guardrails": at the lowest level, circuit-level Supervisory protection ensures the stable operation of the system itself; above that, energy-level Active Discharge and Crowbar circuits—one for normal shutdowns, the other for extreme fault scenarios; next, behavioral safety limits (Cow Barn) define the robot's operational boundaries at the software level; and at the highest level, system-level Safety Interlocking System (SIS) uses hardware and physical wiring to hold the final line of defense. Of course, all of this relies on robust underlying hardware. For instance, SG Micro Corp's Supervisory series products (see Table 1) not only provide circuit-level monitoring and protection but also offer solid support for the design of the upper-layer safety guardrails such as energy-level discharge, behavior-level limits, and system-level interlocking, ensuring that these layered defenses translate into reliable, real-world safety assurances.

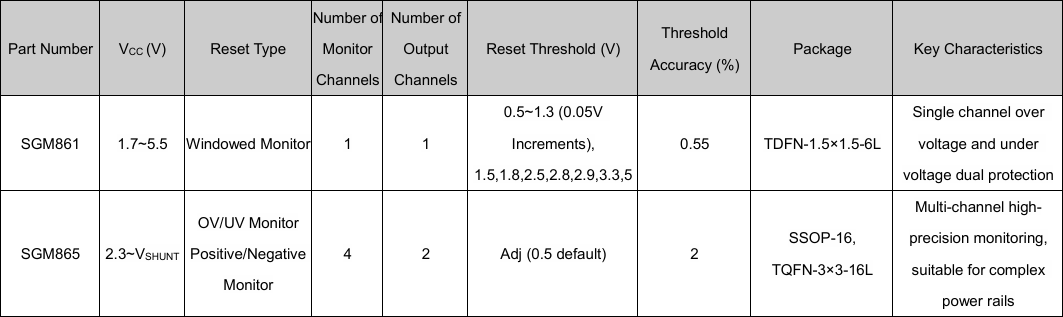

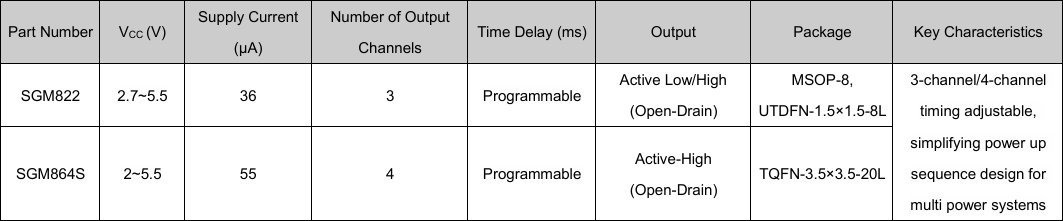

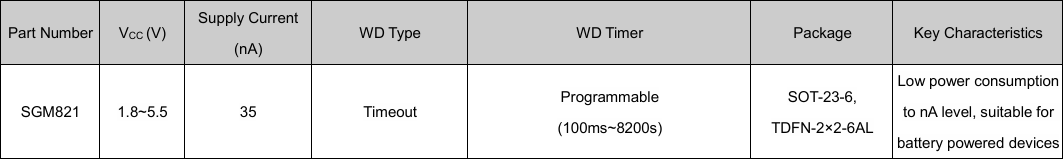

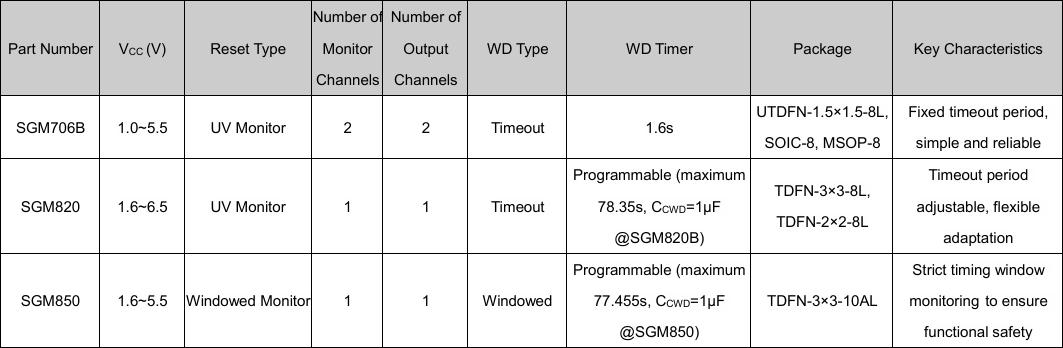

Table 1 SG Micro Corp's Supervisory Series Products

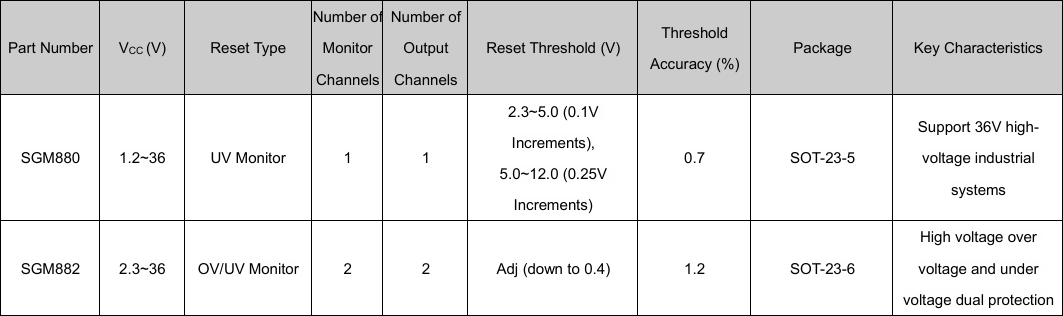

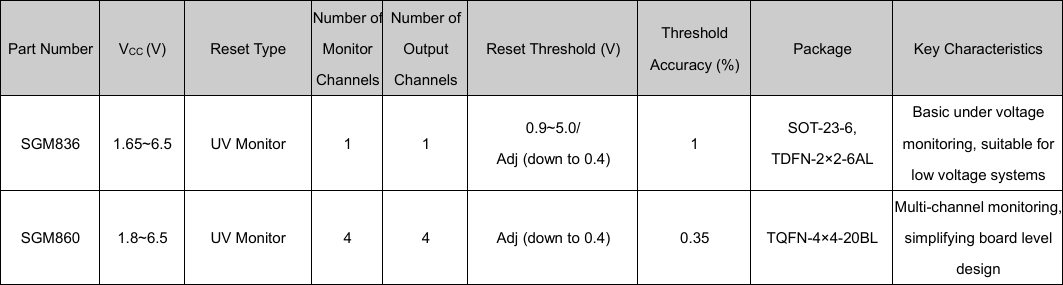

1、Under Voltage Monitor
